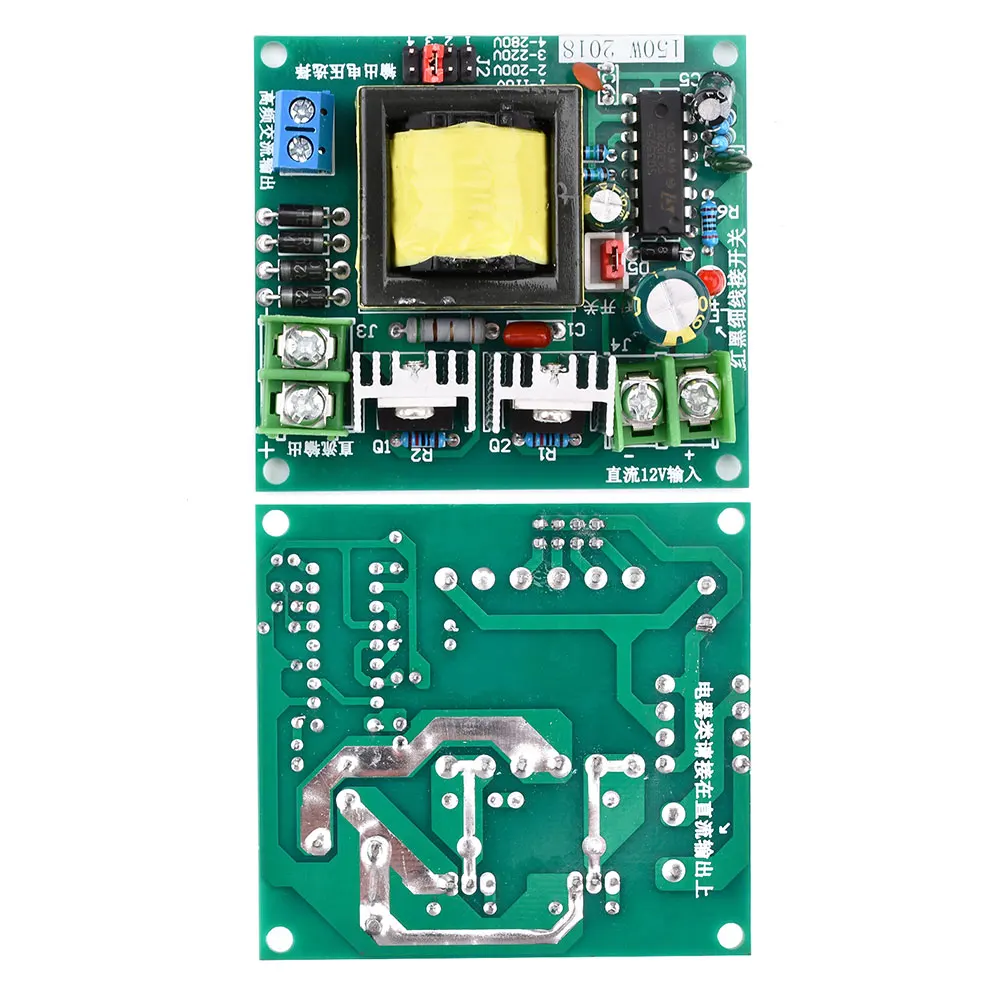

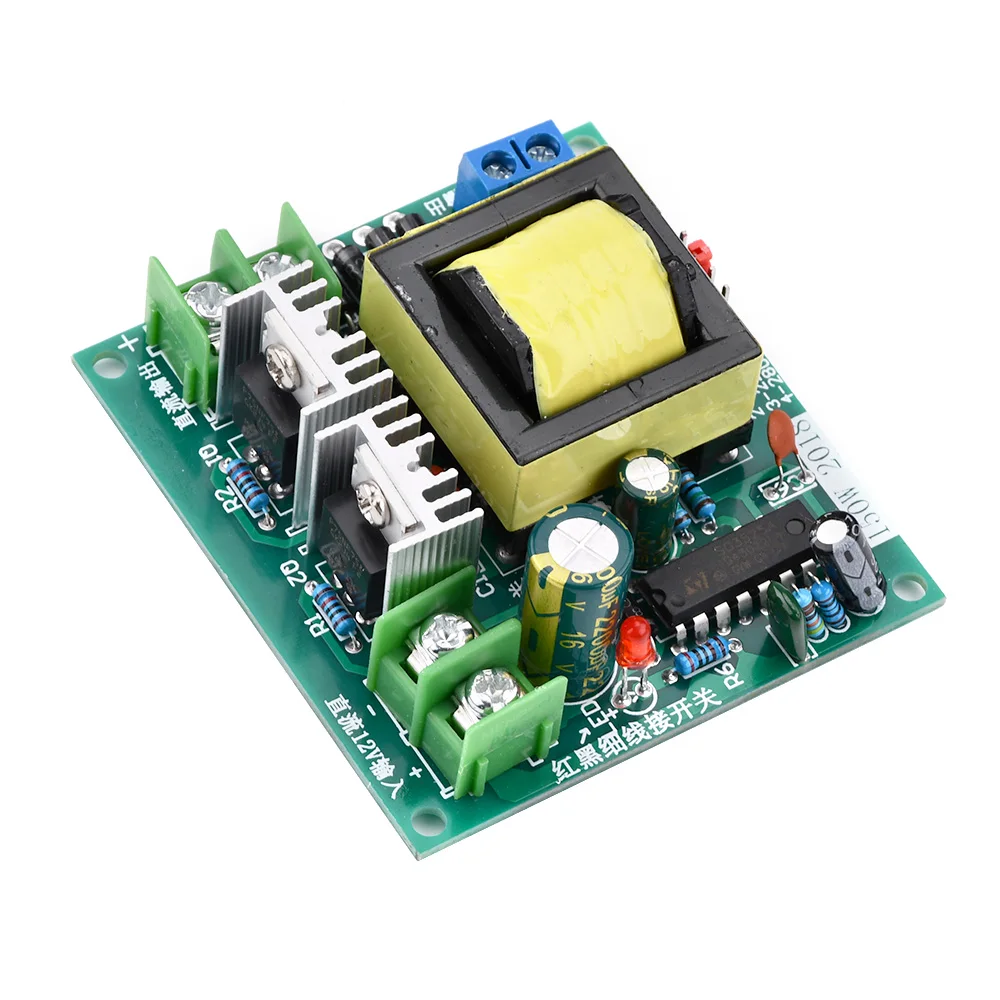

150W DC-AC Boost Inverter 12V to 220V Step UP Power Supply Module Inverse Converter Booster Module Voltage Power Regulator
Product Features:
Solder-free,7.62 terminals for input terminals
Blue 301 terminal block for high frequency AC output, 7.62 terminal block for DC output

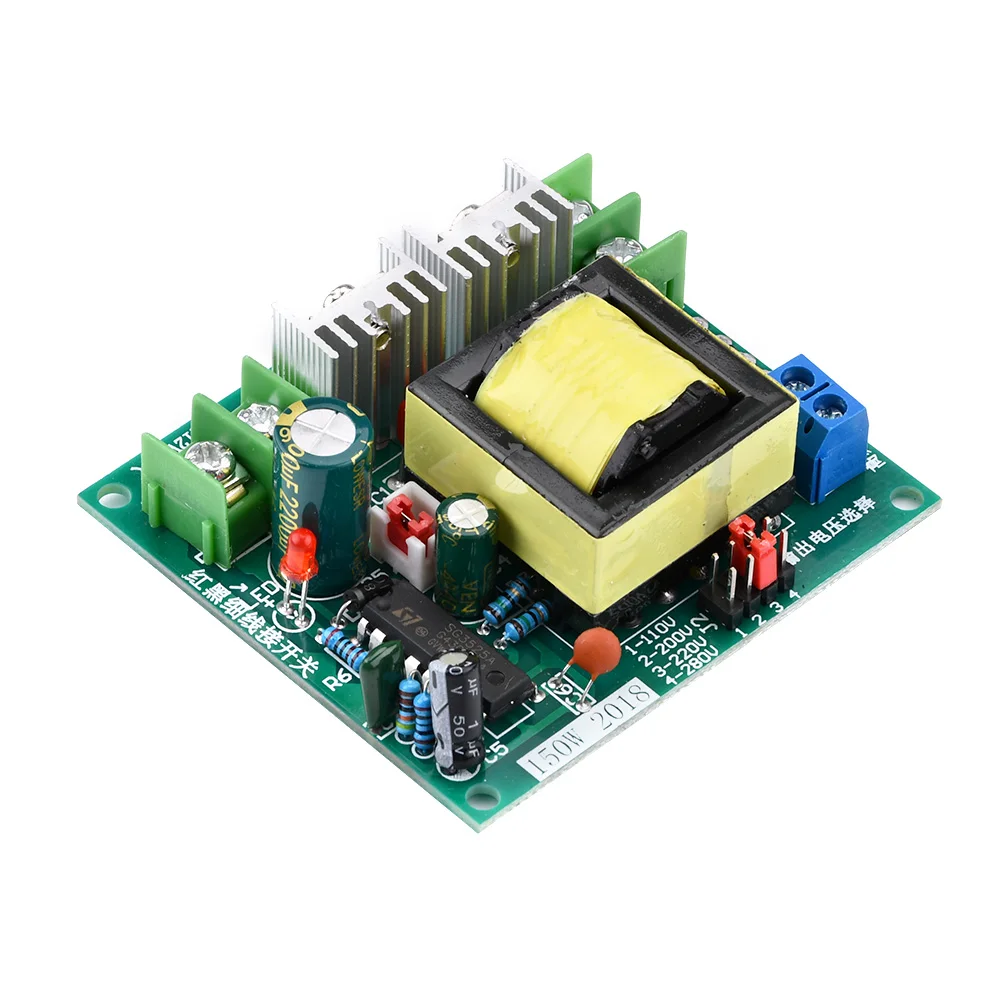

Voltage can be selected at will, through the jumper cap, no need to solder
Large output power, if there is a fan cooling, this board can output 200W power using double-sided circuit board
AC output can be connected to multiplier rectifier, or pure resistive load
Product parameters:
High frequency AC output: only suitable for resistive loads, such as ordinary household incandescent bulbs (tungsten bulbs), ordinary soldering irons, or connected to a doubling rectifier circuit, measure the output voltage do not measure this output, because these voltmeters are designed to measure 50Hz household voltage, not high frequency voltage, there will be a huge measurement error.
DC output port: you can use a multimeter DC gear to measure the voltage, you can take the switch power class load (marked input voltage of AC100-240V voltage appliances are available), resistive load. 150W inverter battery DC12V step-up to AC220V step-up transformer power conversion circuit board.
Switch: The red line black line on the board is the switch, used to control the presence or absence of high voltage output.
Input voltage: 12V, limited low input voltage 8V, limited high input voltage 14.8V. as this board does not have input fuse, please add your own fuse, recommended to add 15A fuse (lithium battery power supply and switching power supply, DC power supply class power supply, this type of power supply will lead to tube overheating burned), the output is not regulated, the input to ensure sufficient power (current), otherwise it is easy to burn out The output voltage is not regulated.
Output voltage: 110V 200V 220V 280V
Output waveform: high frequency square wave or DC (unfiltered)
Output power: 150W (more than 100W please add fan cooling)
No-load 12V terminal current:250mA
Operating frequency:27KHZ
Protection: No protection, please add your own fuse for use
Features: no welding, input terminals using 7.62 terminals, high frequency AC output using blue 301 terminals, DC output 7.62 terminals (directly loosen the terminal screw at the top, insert the wire, tighten the screw can be)
Voltage can be selected at will, through jumper caps, no soldering required
Output power is large, if there is a fan cooling, this board can output 200W power using double-sided circuit board.
AC output: can be connected to multiplier rectifier, or pure resistive load

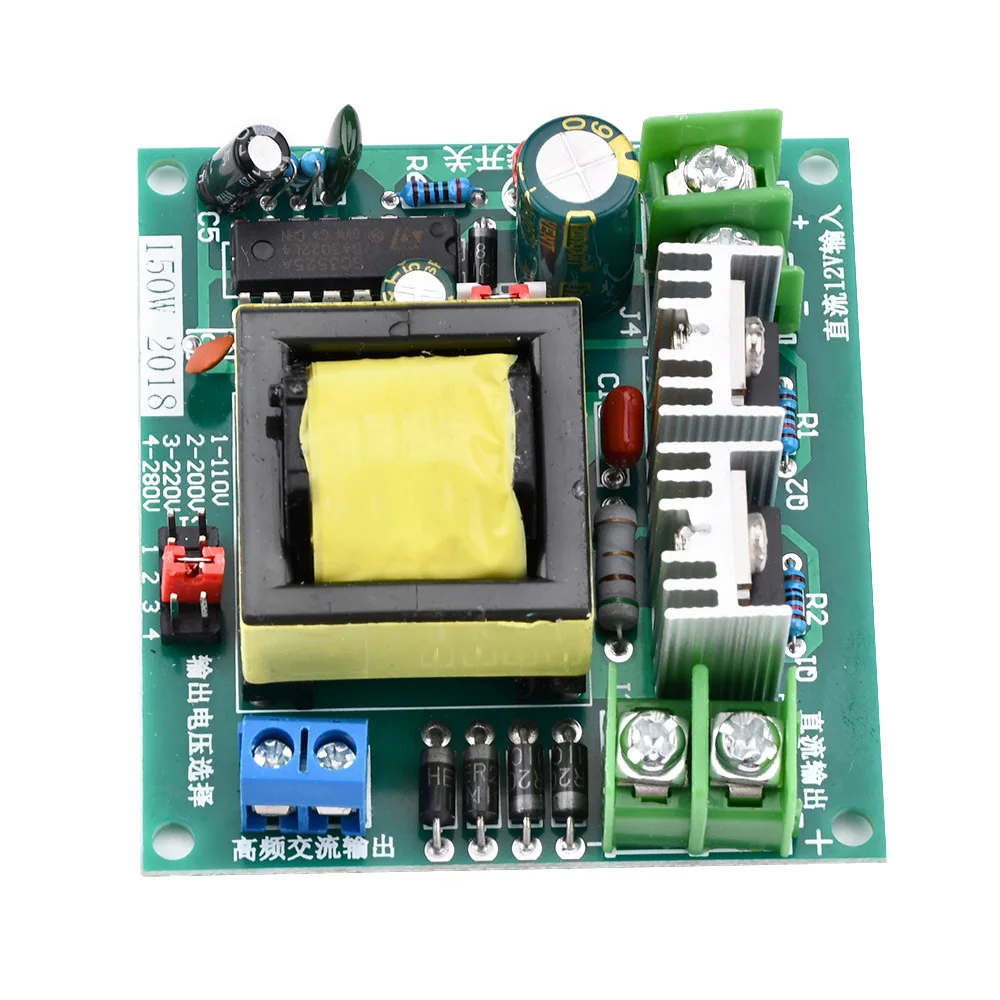

Output voltage: already marked on the circuit board
Caution:
Available electrical range: switching power supply class load, generally marked with an input voltage of 100-240V appliances can generally be used, such as non-cottage mobile phone chargers, set-top boxes, DVDs, LED lights (with constant current drive, so some can be used, some LED lamps can not be used, when using only connected to the DC output port, can not be connected to the high-frequency AC output port) ordinary tungsten bulbs, small hand drill, energy-saving lamps, energy saving lamps, energy-saving lamps, energy-saving lamps, energy-saving lamps, energy-saving lamps, energy-saving lamps, energy-saving lamps. Small hand drill, energy-saving lamps, ordinary non-temperature-regulating soldering iron, the need for high-voltage doubling rectifier circuit, LCD TV sets connected to the DC output port, etc.
The range of non-usable appliances: iron core transformers, such as the use of iron core transformers for audio, temperature regulating soldering irons, dimming lamps, AC motor loads such as electric fans. Cheap resistive buck LED lamps and lanterns (e.g. LED nightlights, straw hat LED lamps and lanterns, LED lamps in plastic housings)
Shipping list:
Step-up Boost Converter Inverter X1
